The E-04 ELT is a direct replacement for the more than 62,000 model E-01 ELT’s (by ACK) on the market today. The E-04 fits directly into the current E-01 mounting trays and uses the same remote control panel indicator. The E-04 external antenna will utilize your current antenna mounting and wiring installations.
Note: The installation manual for this item requires the installation of 2 very specific batteries for operation – Duracell part number PX28L or Eveready part number A55 (or equivalent) for installation into the switch assembly and Duracell part number CR2 or equivalent for installation into the audio alert indicator.
Retrofit Kit does not include remote
Warranty: All warranty issues must be handled directly with the manufacturer. These are non-returnable and non-refundable once installed. If any attempts have been made to install this unit it becomes a warranty issue and can only be resolved with the manufacturer directly. Please view the warranty tab for additional information on the manufacturer’s warranty.
There is a $250 Recertification fee in addition to the 15% restock fee on all ACK products that have been opened.
Highlights:
- Accepts GPS position input data from Bendix/King. Garmin, Nema 0183 GPS
- Antenna is swept back 20 degrees, and features a molded plastic base.
- 5 watts @ 406MHz for 24 hours, and 100 Mw @ 121.5 MHz for 48 hours.
- Simple plug in audible alert indicator.
- Lithium battery pack offers a 5 year battery life, and makes it substantially lighter.
Specs:
- 7.75″ long
- 2.85″ width
- 2.85″ height
- 1.6 pounds in weight with battery
- Remote requires a Duracell PX28L 6 volt lithium battery or an Eveready AS44 battery
- Audible Alert Indicator requires a Duracell CR2 3 volt lithium battery or equivalent

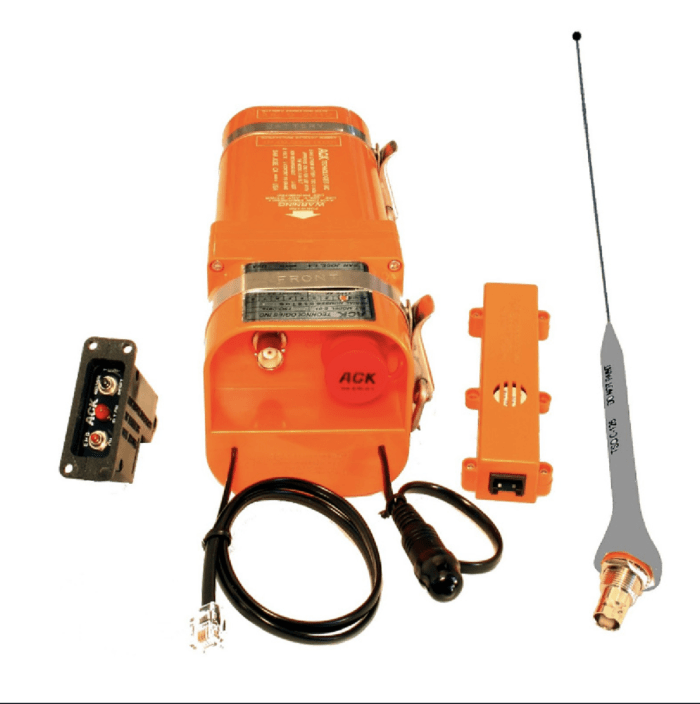

In the box:
- E-04 121.5/406 MHz ELT
- E-04.5 Remote with horizontal placard
- E-04.12.2 Remote vertical placard
- E-04.8 Whip antenna
- E-04.10.1.12 Electrostatic discharger
- E-04.10.4 Coax cable 60″
- E-04.7 Audio alert
- E-04.4 Mounting Tray
- E-04.4.1 Retaining strap front
- E-04.4.2 Retaining strap battery case
- E-04.10.6 Female 4 pin DIN plug
- E-04.10.5 15 foot remote cable
- E-04.10.3 Audio alert cable
- E-04.11.1 Switch cover
- E-04M Installation/Operation/Manual
