TENSIOMETER T5 Series Cable Tensiometers

$879.17$916.58

Buy aviation products safely

  • Done Ships from Distributor directly to You
  • Done Secure Payment Methods
  • Done Available 24/7, Purchase at any time.
Safe Payment
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Apple Pay
SKU: N/A Category: Tags: , ,
Report Abuse

Description

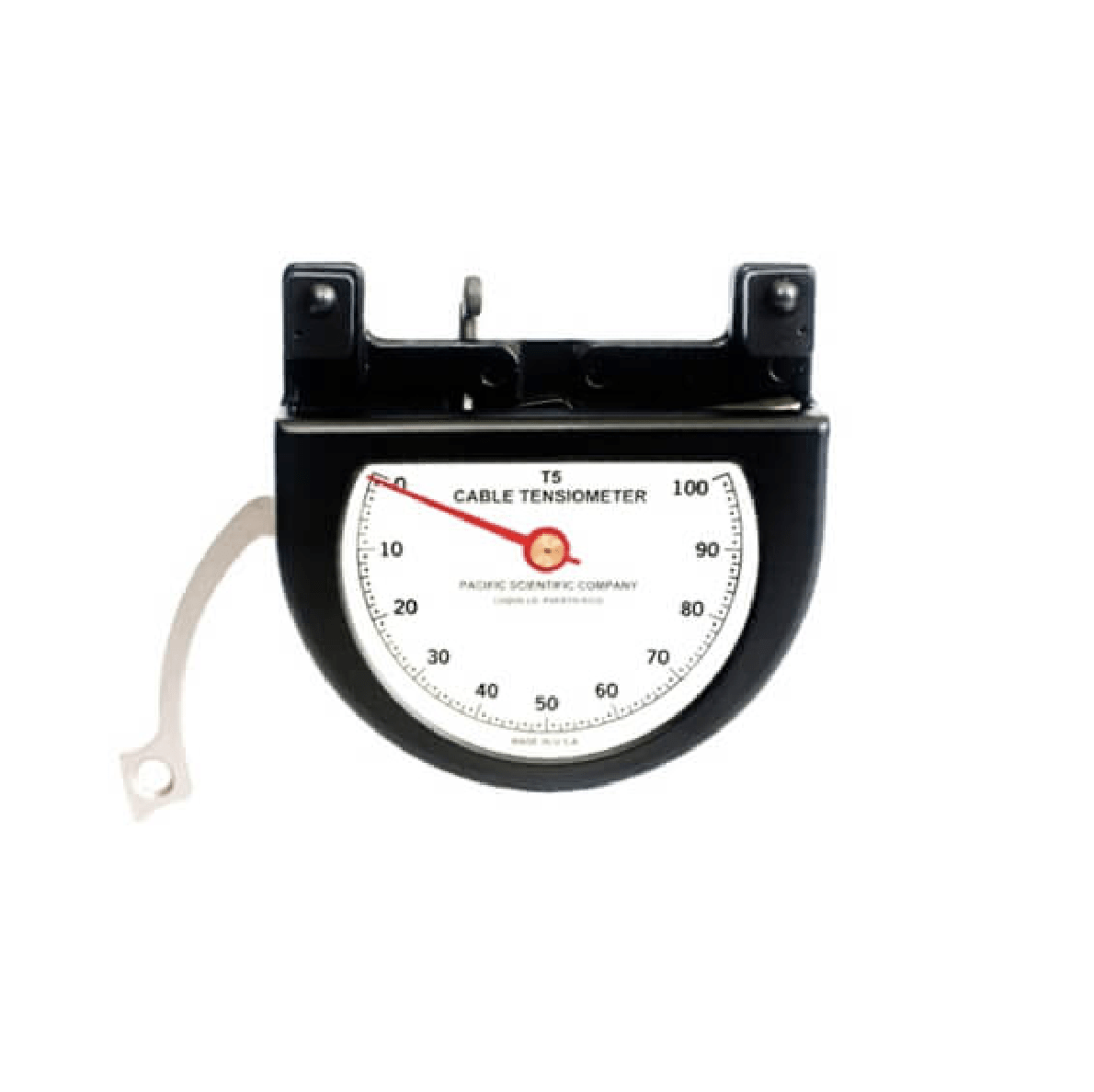

T5 – 2000 Series Cable Tensiometers
The familiar T5 Tensiometer is a low-cost, highly accurate, precision instrument that gives cable tension readings covering a wide range. Each T5 instrument is calibrated at the factory and provided with its own calibration chart for the simple conversion of readings into pounds- tension. The charts shown indicate the riser which must be used to accommodate the various cable sizes and tensions. The T5 is a small, lightweight, precision instrument, durably constructed for long, accurate service.



Part NumberCable SizeRange
T52002101001/16″, 3/32″, 1/8″10-100
5/32″, 3/16″15-150
7/32″, 1/4″25-150
T52002104001/16″, 3/32″, 1/8″30-200
5/32″, 3/16″30-300
7/32″, 1/4″30-300



Accurate and Reliability:
A Pacific Scientific Cable Tensiometer has no temperature error and no preliminary adjustments. This durable instrument may be used continuously without resetting or checking. Extreme heat or bitter cold does not affect the accuracy of indicator readings. One instrument is usable on many cable sizes with absolute accuracy.

Small Size:
The small size of this instrument permits entry through small openings, and permit accurate readings on cables located in confined areas difficult to reach.

Additional information

Weight4 lbs
Dimensions6 × 10 × 6 in
Model

TENSIOMETER T5-2002-101-00, TENSIOMETER T5-2002-104-00
